Webapps

Webapps can be used from Python code with the qmt.Webapp class and with the qmt-webapp command-line tool. This page gives an overview of the included webapps. See Webapp development for information on how to create custom webapps.

The included webapps are available under the special paths /view/ for generic data visualization webapps and /demo/ for single-purpose demo apps.

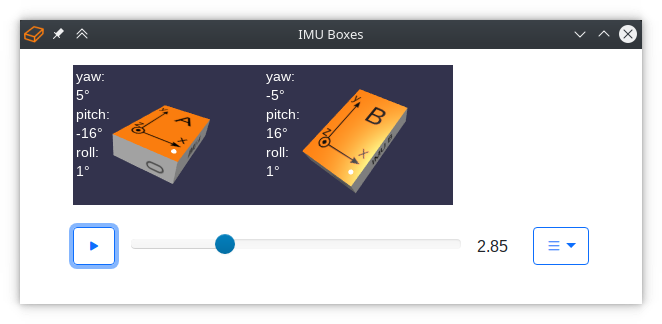

IMU Boxes (/view/imubox)

Visualizes quaternions as IMU boxes. The number of IMUs, names of quaternion signals, and other options can be specified using the config:

config = {
    "imus": [
        {"signal": "quat1", "letter": "A"},
        {"signal": "quat2", "letter": "B", "cs": "FLU", "axes": True},
    ]
}

If no config is set, IMUs are created based on signals with the name ‘quat’, followed by a single character, in the first sample.

See the examples webapp_example_script.py and webapp_example_notebook.ipynb for various examples that use this webapp.

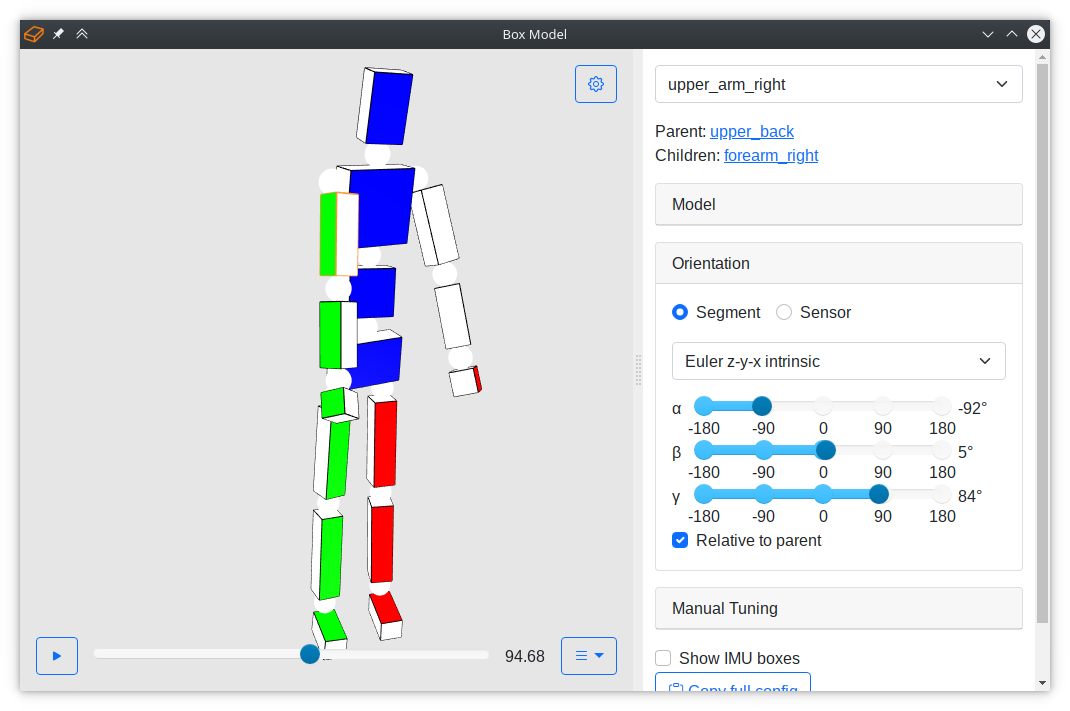

Generic Kinematic Chain Box Model (/view/boxmodel)

Visualizes movements of a kinematic chain as a model of boxes (and spheres at the joints). A predefined human body model can be used, or a custom model can be specified via the config. To use the pre-defined human model, create a config to tell the visualization which quaternions to apply to which body segment and optionally override any other properties:

config = {
    "base": "human",
    "segments": {
            "foot_left": {"signal": "foot_left.quat", "color": "red"},
            "foot_right": {"signal": "foot_right.quat", "color": "blue"},
             ...
         },
    }

The following configuration options are available:

base: Template to use. Currently, the only available template is human. The 16 body segments are: hip, upper_leg_left, lower_leg_left, foot_left, upper_leg_right, lower_leg_right, foot_right, lower_back, upper_back, upper_arm_left, forearm_left, hand_left, upper_arm_right, forearm_right, hand_right, and head. If no base is given, a custom kinematic chain has to be specified via the segments option.
segments: Defined the segments of the kinematic chain. If a base template is used, each entry in in segments will overwrite the corresponding items in the template.
defaults: Default segment properties.
debug_mode: Opens right sidebar with debug controls if set to true (default: false).

The following properties in segments are used to define a kinematic chain. If they are not given, default values are used.

parent: The name of the parent segment which current the segment connected to. At least one segment needs to have root as the parent segment.
signal: The name of the quaternion signal that defines the segment orientation, default: null/None.
quat: Initial/default segment orientation quaternion, default: [1 0 0 0].
heading_offset: Heading offset in degrees that was applied to the segment. This value is used as the initial value for the manual tuning slider. It is expected that the offset is already applied to the segment, default: null.
relative: Defines if orientation is relative to the parent segment, default: false.
dimensions: 3D vector defining the size of the segment box, default: [0 0 0].
sphere: Diameter of the joint sphere, default: 3 (set to 0 to hide sphere).
origin_rel: Origin of the local coordinate system (i.e., the center of the joint sphere), as a 3D vector starting from the center of the segment box, relative to the segment’s dimensions, default: [0 0 0].
origin_abs: Origin of the local coordinate system (i.e., the center of the joint sphere), as a 3D vector starting from the center of the segment box, in absolute sizes, default: [0 0 0]. Absolute and relative sizes are added up, i.e., origin = dimensions*origin_rel + origin_abs.
position_rel: Position of the local coordinate system (i.e., the center of the joint sphere) in the parent’s coordinate system, relative to the parent’s dimensions, default: [0 0 0].
position_abs: Position of the local coordinate system (i.e., the center of the joint sphere) in the parent’s coordinate system, in absolute sizes, default: [0 0 0]. Absolute and relative sizes are added up, i.e., position = parent_dimensions*position_rel + position_abs.
scale: Scaling factor for all sizes, default: 1.0.
color: The color of the box, default: red.
face: Integer from 0 to 5 that describes which face of the box to color, default: 4.
edges: Defines if edges of the box should be rendered, default: true.
opacity: Opacity of the box from 0 to 1, default: 1.
q_segment2sensor: Sensor-to-segment orientation quaternion for IMU boxes, default: null/None.
imubox_show: Enables showing of small IMU boxes if q_segment2sensor is defined, default: true.
imubox_scale: Scaling factor of the IMU box, default: 0.6.
imubox_cs: Coordinate system of the IMU (see the IMUBox class), default: ‘RFU’.
imubox_distance_rel: Distance of the IMU box from the segment box center (relative to segment dimensions), default: 1.05.
imubox_distance_abs: Distance of the IMU box from the segment box center (absolute), default: 1.
imubox_options: Arbitrary extra options (e.g., texture) that are passed to the IMU boxes.

The following example configuration defines a kinematic chain with 2 segments, consisting of forearm and hand:

config = {
    "segments": {
        "forearm": {
            "parent": "root",
            "signal": "q_forearm_seg",
            "dimensions": [4, 25, 7],
            "origin_rel": [0, 0.5, 0],
            "color": "C0",
            "face": 3,
        },
        "hand": {
            "parent": "forearm",
            "signal": "q_hand_seg",
            "dimensions": [3, 12, 9],
            "position_rel": [0, -1, 0],
            "position_abs": [0, -1.5, 0],
            "origin_rel": [0, 0.5, 0],
            "origin_abs": [0, 1.5, 0],
            "color": "C1",
            "face": 3,
        },
    }
}

The example above follows the ISB coordinate system conventions. The origin of the forearm coordinate system is the elbow joint center, which is in positive y-direction. From the box center, this means that we have to specify a relative origin vector of [0, 0.5, 0]. For the hand, we have to add an absolute distance of 1.5, i.e., half of the joint sphere diameter, to the origin vector. In forearm coordinates, the wrist joint center (i.e., the position of the hand coordinate system) is in negative y-direction. From the forearm origin, the distance is the length of the forearm box (-1 as position_rel) plus half of the diameter of the joint sphere (-1.5 as position_abs). For another example, see how the human template is specified in the file boxmodel.json in the assets folder.

Full Body Motion Tracking Demo (/demo/full-body-tracking)

This demo extends the functionality of the box model viewer by additional features and controls for a full body motion tracking demo. See the script full_body_tracking_demo.py in the examples/ directory.

IMU Raw Data Demo (/demo/imu-raw-data)

Real-time visualization of raw IMU measurements, i.e., gyroscope, accelerometer, and magnetometer measurements, both as line plots and as 3D arrows. This demo can be used to explain what IMUs measure. To run it with generated IMU data, run:

qmt-webapp --datasource '{"class": "qmt.DummyImuDataSource", "Ts": 0.04}' /demo/imu-raw-data

Orientation Estimation Demo (/demo/orientation-estimation)

screenshot of orientation-estimation webapp

Real-time comparison of different IMU orientation estimation algorithms. Two algorithms can be run side-by-side, and parameters can be adjusted on the fly. The right sidebar shows various plots to gain insight into the behavior of the algorithms. To run the demo, execute the Python script orientation_estimation_demo.py in the examples/ folder of the repository.

By default, the qmt.DummyImuDataSource is used to generate some fake IMU data as input for the algorithms. To connect this demo with a real IMU, implement a compatible qmt.AbstractDataSource and configure the demo to use your custom data source:

./orientation_estimation_demo.py '{"class": "my_module.MyImuDataSource", "device": "6fb3fe"}'

Euler Angles Demo Tool (/demo/euler-angles)

Tool for exploring quaternions and different Euler angle conventions to represent orientions. Two boxes are displayed and the orientation can be set via sliders in different representation.

Webapp Template (/demo/template)

This webapp serves as a simple starting point that can be copied to create a custom webapp. The right side shows the last received sample as JSON text, which can also be useful for testing purposes.

UI Element Gallery (/demo/ui-gallery)

The UI gallery includes many user interface elements available in lib-qmt.js and provides a quick overview of what is available for building custom webapps.
